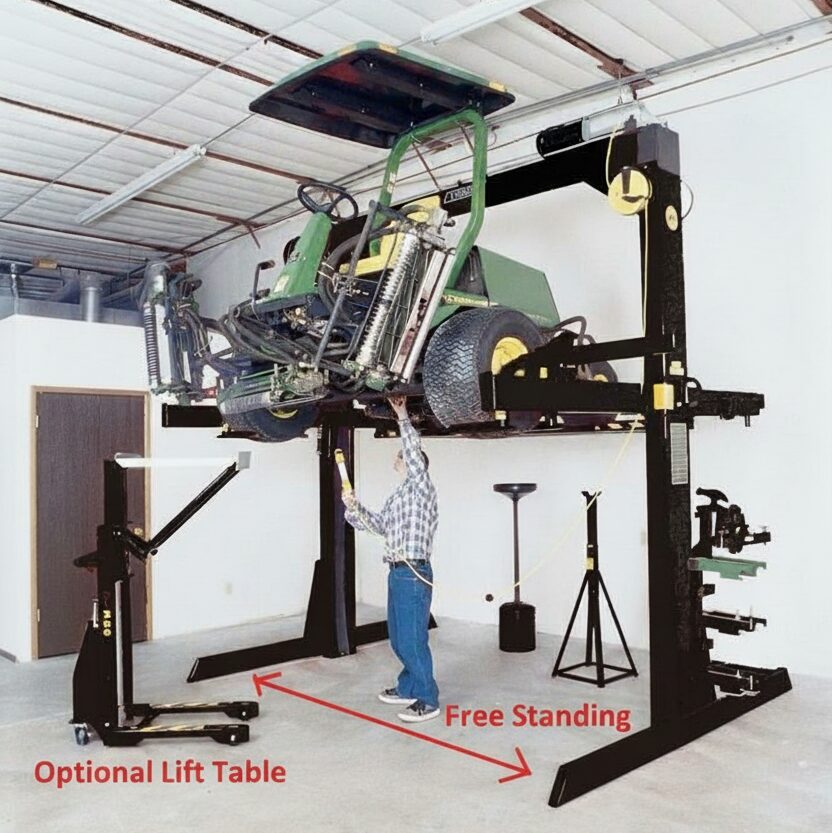

TurfPride Trion Pro-M 9200 Lift Workstation

Professional hydraulic lift workstation for golf course and turf equipment maintenance. Raises mowers, utility vehicles and equipment up to 4,700 lbs. to a comfortable 72″ service height for bedknife replacement, undercarriage work, and full equipment servicing.

Key Applications:

• Golf course maintenance department equipment servicing
• Greensmower and fairway mower bedknife replacement
• Utility vehicle and turf tractor undercarriage work
• Professional parks and recreation equipment servicing

Key Features:

• 4,700 lb maximum weight capacity — handles virtually all turf equipment
• 72″ lift height with 58-second lift time
• 1-1/2 HP 220V/60Hz motor on a 20 amp dedicated circuit
• Factory pre-wired, pre-tested, and pre-assembled for easy installation (~2.5 hours)
• All controls in one location for single-operator use
• Quality steel construction with 3:1 minimum safety ratio at all stress points

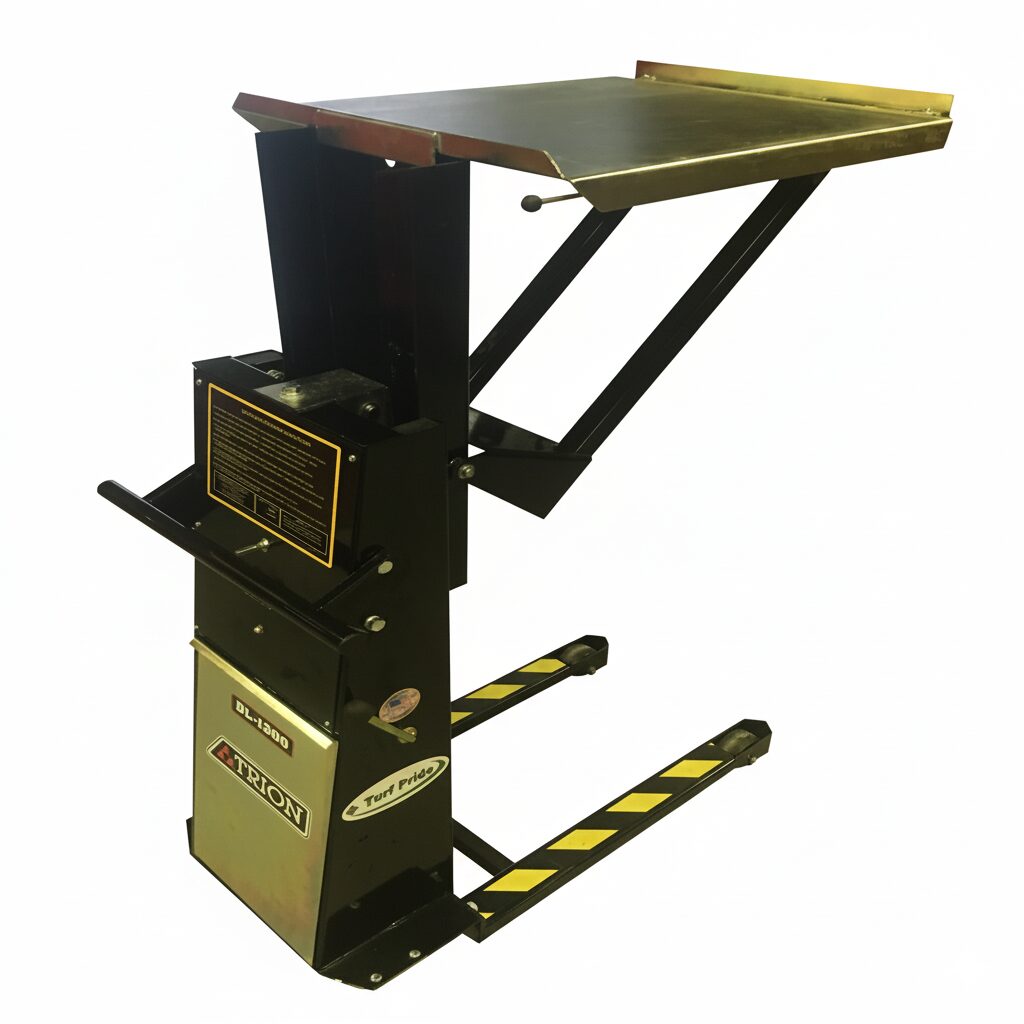

• Optional DL-1300 Mobile Lift Table, Universal Attachment, and accessories available

Specifications:

• Overall Height: 138″ | Length: 121″ | Width: 122″
• Max Weight Load: 4,700 lbs.
• Max Equipment Wheel Width: 82″ (forks) / 96″ (wheel tray)
• Min Equipment Wheel Width: 42″ / 31″ with small wheel adapters
• Max Equipment Wheel Base: 86″
• Shipping Weight: 1,685 lbs.
• Power: 1-1/2 HP, 220V/60Hz, 20 AMP

Warranty: 5-year limited parts warranty + 30-day satisfaction guarantee | Shipping: Freight/LTL | By TurfPride
